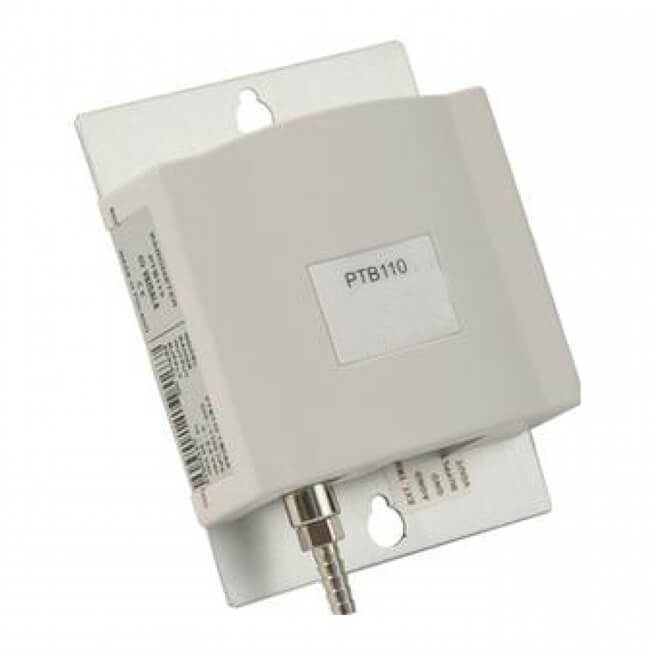

BAROMETRIC PRESSURE SENSOR PTB110

MEASURING THE BAROMETRIC PRESSURE

The air pressure sensor PTB110 measures the barometric pressure and is made for the installation in a radiation protected switch cabinet or weather shelters. It has got a high long-time stability and can be used in a harsh climatic environment.

Dodaj u ponudu
SKU: 791 Kategorije: ,


Opis

TECHNICAL DETAILS

  • Measuring range 600 … 1060 hPa
  • Linearity 0.25 hPa
  • Hysteresis 0.03 hPa
  • Accuracy +/- 0.3 hPa (at +20 °C)
  • Operating temperature -40 °C … +60 °C
  • Output voltage 0 … 2.5 V DC
  • Power supply 10 … 30 V DC
  • Power consumption less than 4 mA (standard operation)
  • Weight 90 g
